Elevator Trim Servo Bracket Assembly

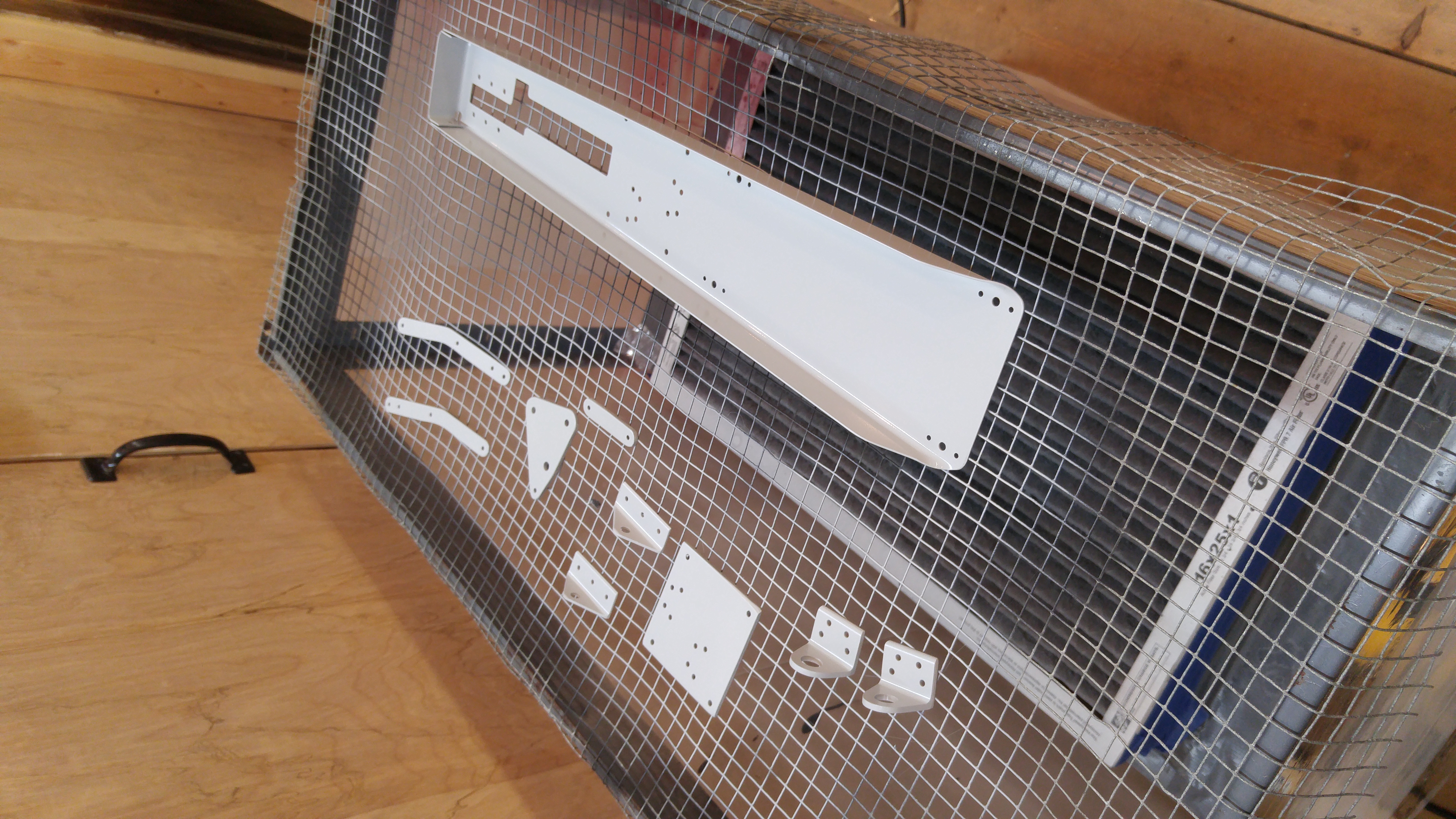

This evening I took the primed parts for the elevator trim servo system and assembled them. All rivets were squeezed using the longeron die to get around the tall flanges on the bracket itself. Time this evening: 2.5 hrs.

The initial rivets

Push-Pull Rod brackets installed

Servo and servo linkage installed

Torque Sealed the servo mounting nuts
