Left Elevator Trim Tab Construction

A time lapse video up to and including drilling and dimpling.  I had an issue at the end with the microstop countersink slipping and I am waiting on some “oops rivets” to arrive to finish it.  I’ll start on the right tab tonight.



[stream flv=x:/www.brunbergs.net/wp-content/uploads/2015/04/lefttrimtab1.240p.flv img=x:/www.brunbergs.net/wp-content/uploads/2015/04/TrimTabShot1-300×169.jpg mp4=x:/www.brunbergs.net/wp-content/uploads/2015/04/lefttrimtab1.mp4 embed=false share=false width=640 height=360 dock=true controlbar=over bandwidth=high autostart=false responsive=16:9 /]

Practice Project: Plans Binder

I figured I could use some practice with basic sheet metal techniques.  While I took the EAA RV Assembly SportAir Workshop back in January (Thanks to all the folks at EAA and KFDK who made that happen!) and completed the Van’s airfoil practice kit, I still have a ways to go until I feel my driven rivets are good enough to fly.  So, I figured I’d do a little work.

At the same time, I was looking for a proper 11×17″ binder to protect my plans, but when I looked at the prices at Staples and other office supply shops (including Amazon) I figured I could do better for less (the cost of a simple binder at Staples is ridiculous–well over $40 for a thin binder, and better ones get up near $70-80 each!).


So I figured I’d combine the two needs into one.  I ended up with a sturdy, handmade binder made of 3003 aluminum sheet (0.040″).  I obtained the aluminum sheet from Metal Supermarkets, which conveniently has a retail location a short drive from my office.  The piano hinges were sourced at Home Depot, and the D-ring was cannibalized from an inexpensive 8-1/2 x 11″ binder.  Total cost, approximately $40, but I got some valuable practice at riveting, drilling, countersinking, dimpling, and deburring.

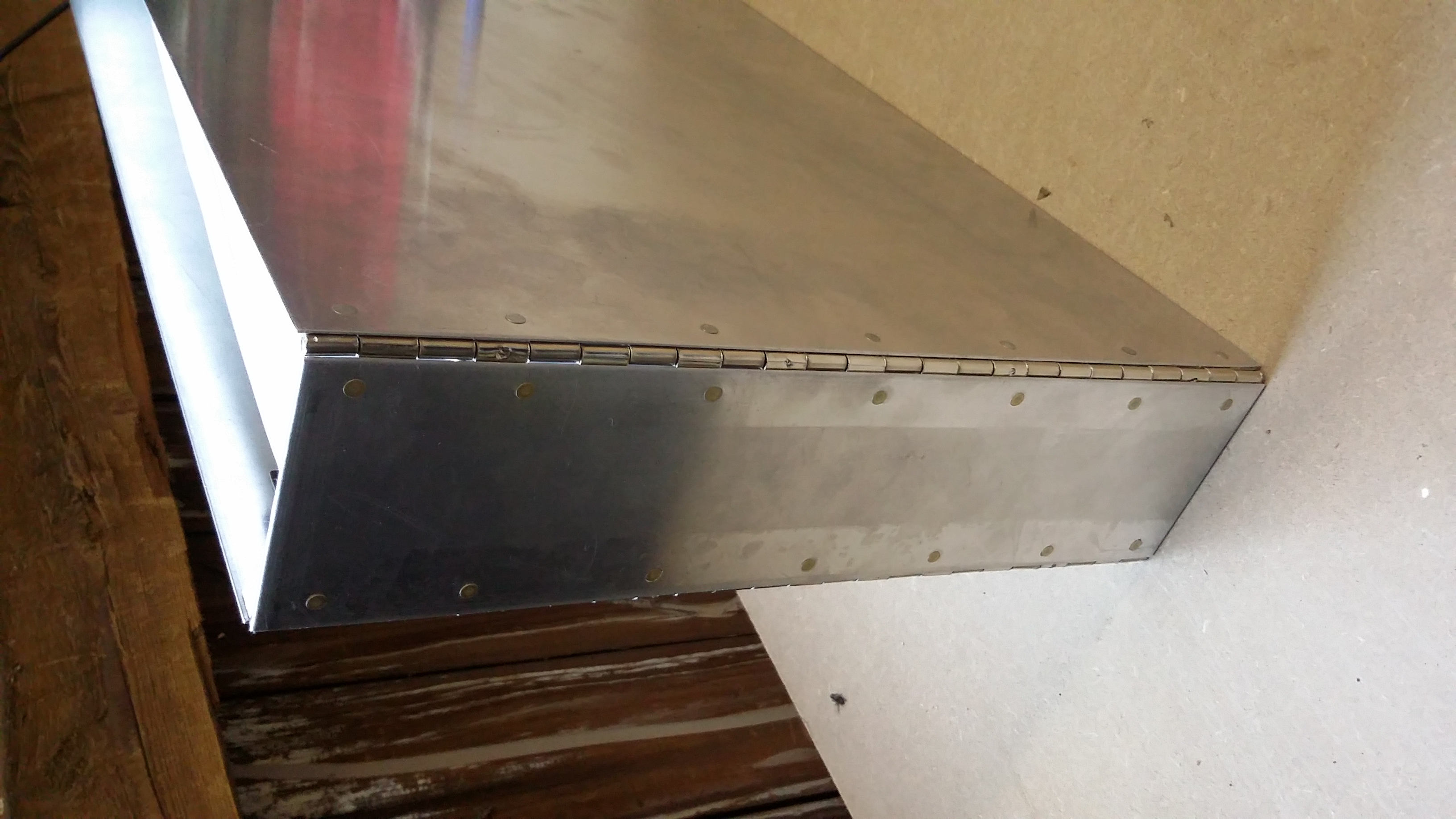

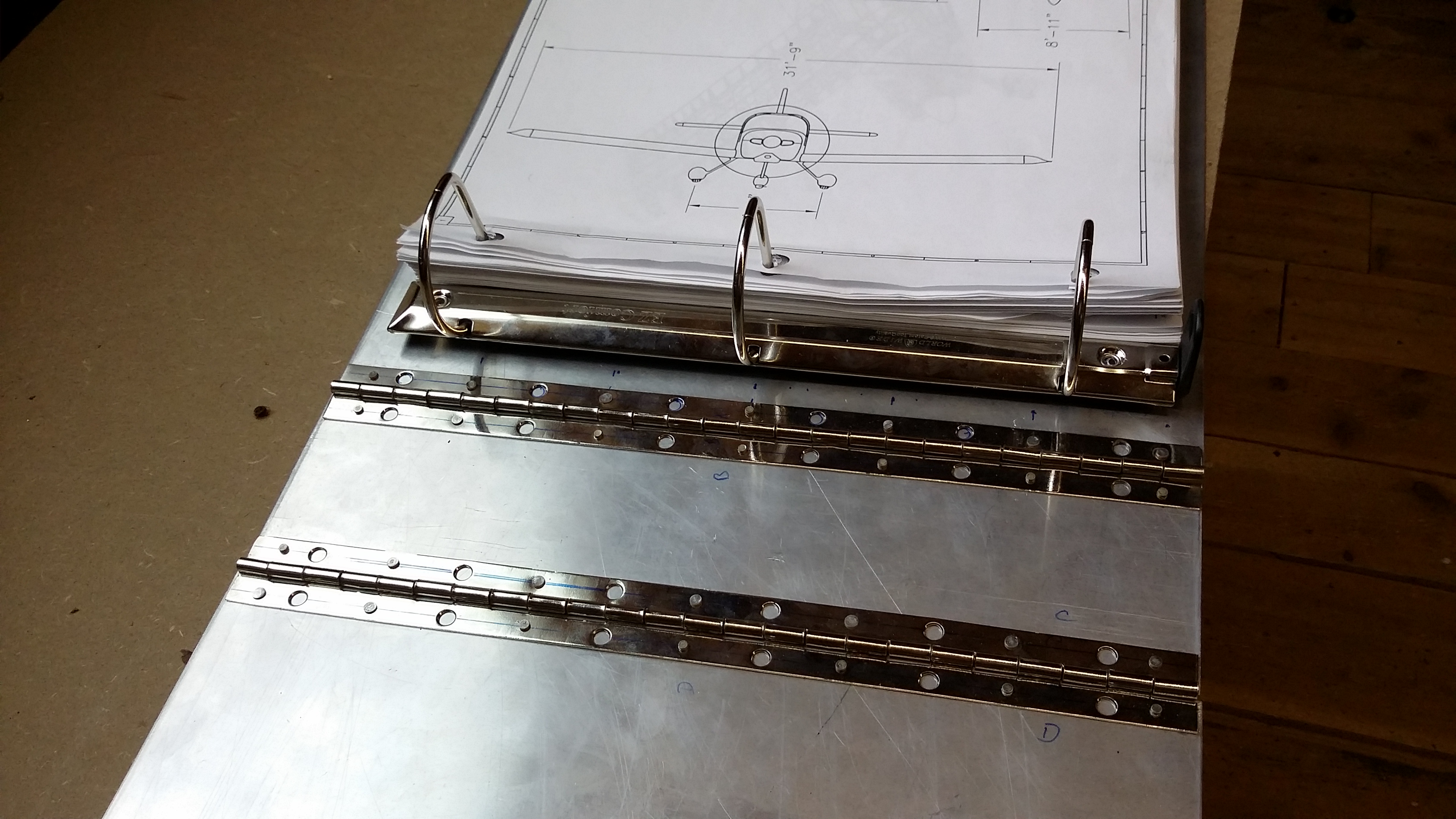

I didn’t use the pre-drilled holes in the Home Depot hinges because they were simply too large for the rivets I wanted to use and larger rivets would have been a waste here.  You can see variability in the degree of the shop head development because I was experimenting with different settings on the rivet gun.  I decided not to re-do them simply to remind myself of the significant differences.

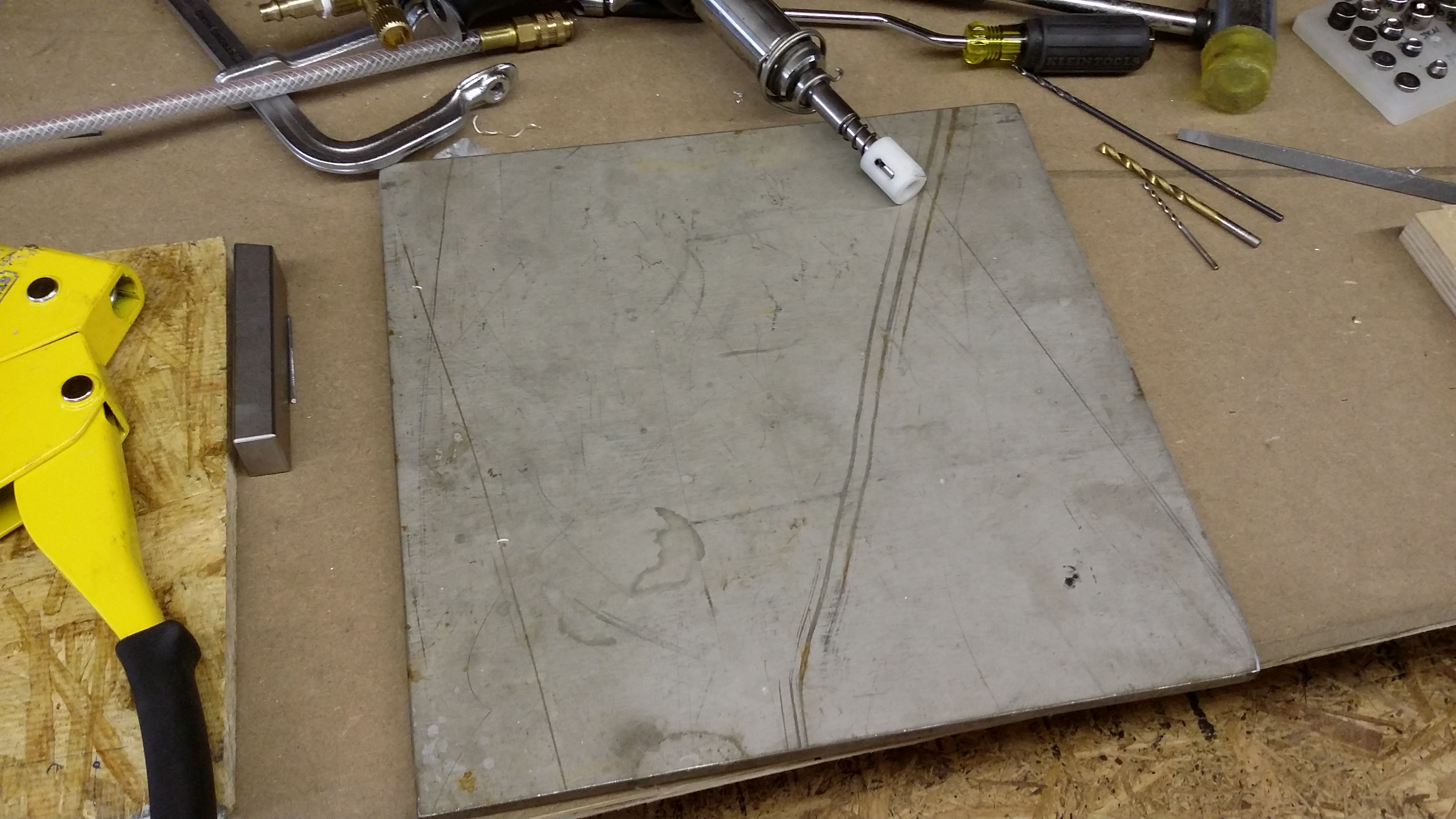

I back riveted the hinges to the spine and covers using a large stainless steel plate I happened to have lying around.  I may polish the plate to get a better finish but this was acceptable for the purpose here.

Shiny!

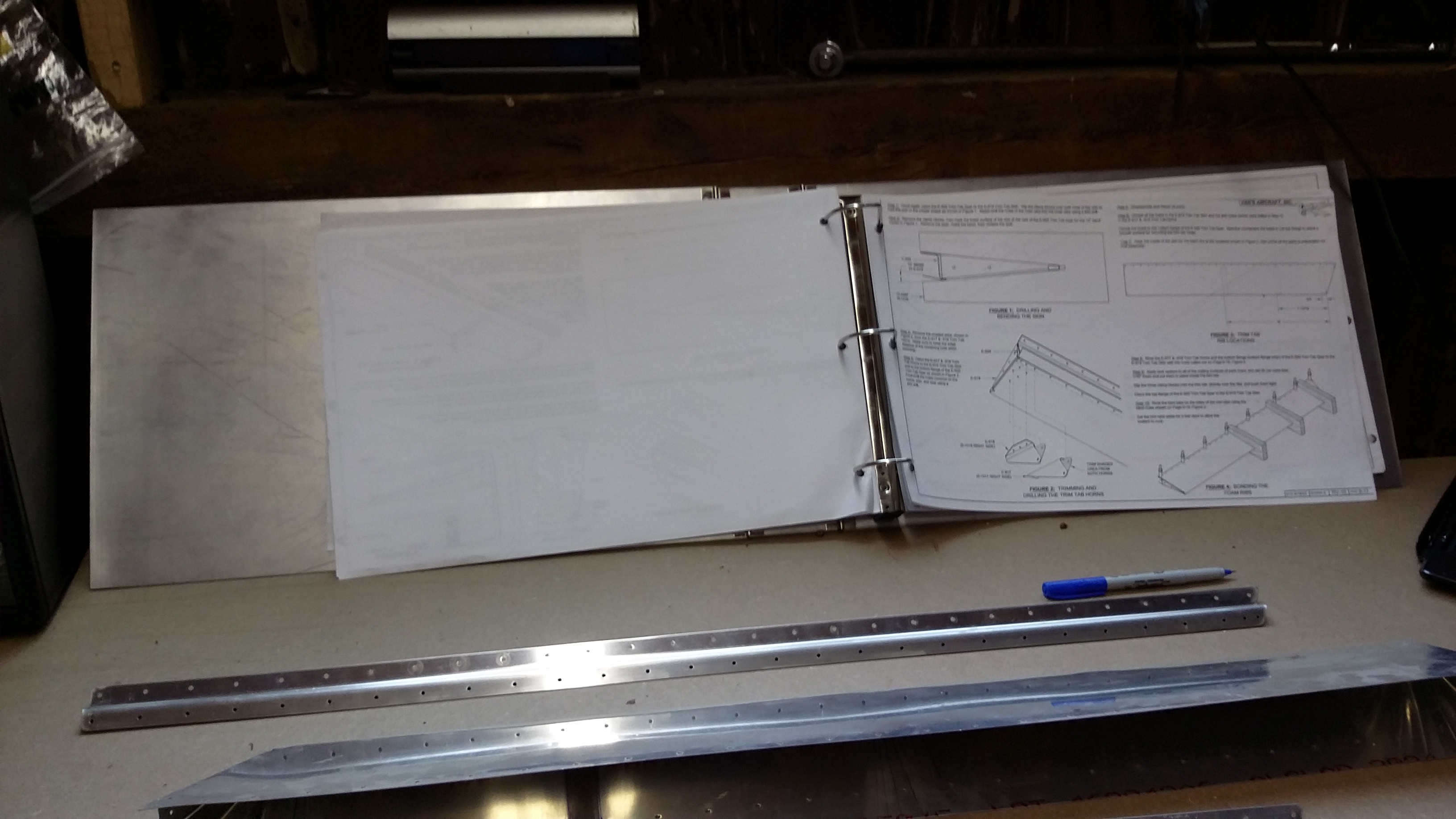

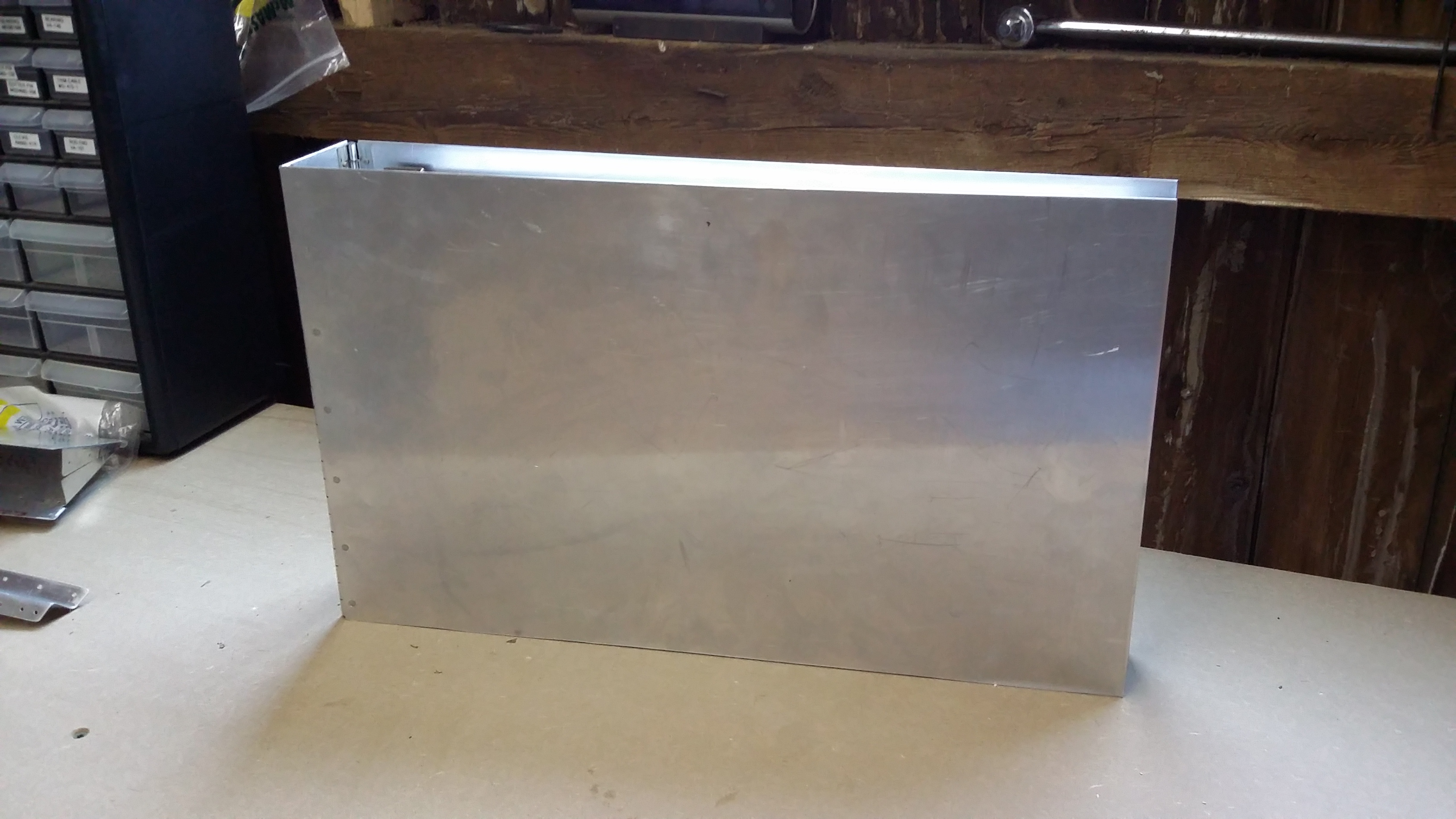

A bonus to this binder is it is rigid enough to stand up and hold the plans properly without deforming the binder.  I may add a clasp and a handle in the future, as well as possibly some holes for hanging hooks if I find that may be useful.
